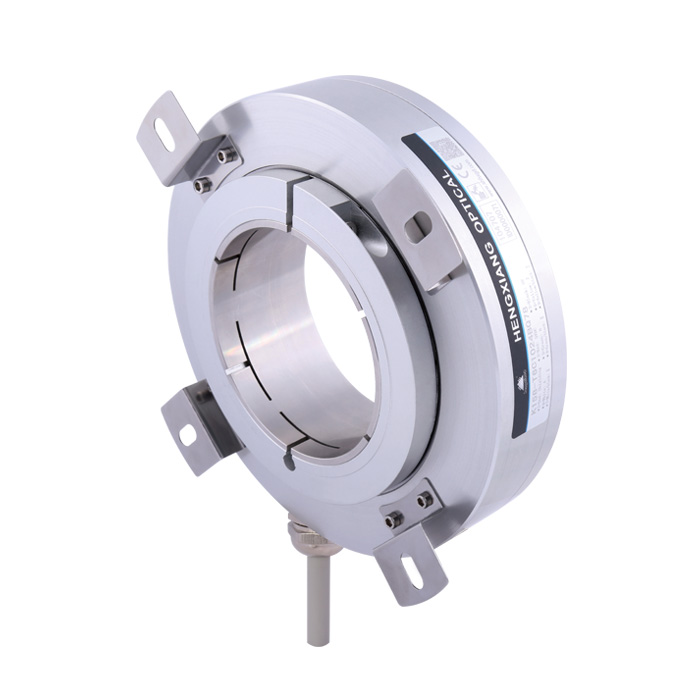

K158 hollow shaft encoder large hole

Product introduction：

-External diameter : Φ158mm, thickness :43mm

-Shaft : Φ70mm;Φ75mm;Φ78mm;Φ80mm;Φ82mm;

-Pulse per round : Min 1024ppr, Max 80000ppr

Data download

Detail display

Items	Basic parameters
Brand	HENGXIANG
Encoder type	Incremental encoder
External diameter	158mm
Thickness	43mm
Installation dimension	R85mm(spring plate 158T170)
Hollow shaft type	through hole (clamping ring at prior)
Hollow shaft diameter	70mm,75mm,78mm;80mm;82mm
Resolution	1024;2048;20000;40000;80000
Output phase	Phase A+,B+,Z+,A-,B-,Z-
Supply voltage	DC5V ; DC8-30V
Outlettype	Cable out from side
Output mode	Push-pull output
	line drive (26LS31) TTL
	line drive(DC8-30V) HTL
Consumption current	100mA MAX
Top response frenquency	300KHZ
Insulation resistance	10MΩ
GND	not connect to encoder
starting torque	less than 400 x 10^-3N.m
Intertia moment	less than 350x 10^-6kg.m²
Shaft load	Radial 90N; Axial 60N
Top REV	3000RPM
Environmental temperature	Operating:-20 ～+80°；storage:-25 ～+85°
Enviromental humidity	Operating and storage: 35-85%RH(noncondensing)
Vibration(endure)	Amplitude 1.52mm,5-55Hz,2 hours for three axis individually
Sock(endure)	1960m/s² (200g),11 ms three times for X,Y,Z direction individually
Shaft Material	Stainless steel
Shell Material	aluminium alloy
Cable length	1000mm(cable with shielding)
Protection grade	IP50
Cable length	1M (cable length could be added appropriately by
	require, but it need payment individually)
Certification	CE
package	Carton box
Net weight	About 1800g (with package)
