Product introduction：
-External diameter Φ48mm , thickness 34mm
-Shaft : Φ9mm;
-Resolution :Max to 5000P/R
-Output Phse:A;B;Z;U;V;W
Position：HOME > PRODUCTS > Encoder > Incremental -Hollow Shaft Encoder > ⌀48mm
Product introduction：
-External diameter Φ48mm , thickness 34mm
-Shaft : Φ9mm;
-Resolution :Max to 5000P/R
-Output Phse:A;B;Z;U;V;W

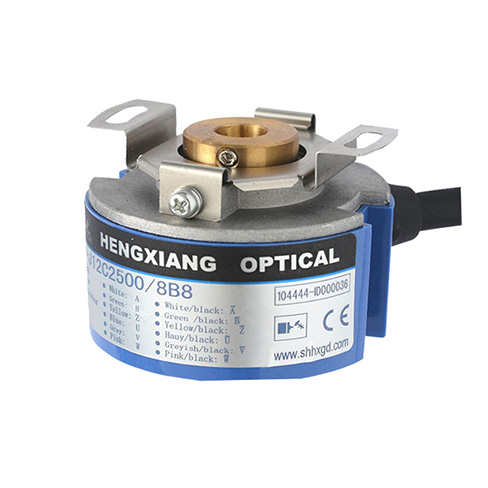

KZ48 Hollow Shaft Servo Motor Encoder Taper shaft motor encoder 9mm taper 1:10 depth 15mm LD output for servo motor
About Our Factory
o Own brand of "HENGXIANG" encoder
o Has ISO9001：2000 Quality Management System Certificate and CE Certification
o Invention patents five and utility model patents five
o Passed Shanghai New and High-tech Achievements Transformation Project.
o Our target: Meeting Client's Requirement、Creating Social value、serving clients attentively and Achieving win-win.
o Located in Shanghai city
o 20-30 experienced workers
KZ48 encoder model number to select
KZ48-J12C2500/16
KZ48-J2V500
KZ48-J3N512
KZ48-J4C600
KZ48-J6E720
KZ48-J12C2000/4
KZ48-J2F1000
KZ48-J3FH1024
KZ48-J4E1200
Product introduction of KZ48 Encoder
| Brand | HENGXIANG |
| External Dimensions | External diameter: 48mm |
| Thickness: 34mm | |
| Shaft diameter:9mm/12mm(Cone shaft) | |
| Cone Depth: 1:10 | |
| Resolution | 22;50;60;100;200;250;256;300;360;500;512;600;720;1000;1024;1200;2048;2500;3600;4096;5000 |
| 1000/16; 2000/6; 2000/8; 2000/12; 2048/6; 2048/8; 2500/4; 2500/6; 2500/8; 2500/16;4096/8 | |
| Output Phase | Phase A,B,Z,A-,B-,Z-,U,V,W,U-,V-,W- |
| Supply voltage | DC5V & DC8-30V |
| Outlet type | Cable out from side |
| Output Mode | Collector open circuit output(NPN &PNP) |
| Voltage output | |
| Push-pull output | |
| Line Driver (26LS31) | |
| Line Driver Compatible RS422 | |
| Line Driver(RT7272) | |
| Environmental temperature | Operating temperature:-20~+80° (Non icing) |
| Storage temperature: -25~+85° (Non icing) | |
| Environmental humanity | Operating and storage: 35~85%RH (non-condensing) |
| Protection grade | IP50 |
| Cable length | 500mm (cable length could be added ) |
| Shell | Aluminium |
| Package | Carton box |
| Net weight | About 140g (with package) |
| Certification | CE |
More details
MOQ: 1pcs
Price:Click online service or email us right now to get the latest quotation.
Advantage of “HENGXIANG” encoder factory
· Over 18 years encoder production experience
· More than 20 years experienced engineers
· Professional working team
· High quality standard
· Quick Response time
· Utility Model Patent Certificate
· Own brand and unique brand
· CE certification for all models
· Prompt delivery date
· 100% full inspection before shipment
Applications
· Petrochemical industry
· Pharmaceutical industry
· Inverter
· Variable frequency driver
· Embroidery machine
· Elevator
· Printing machinery
· Projector
· Injection molding machine
· Disc shoe machine,
· Textile dyeing
· Leather machine
· Paper equipment
· Industrial machinery
· Paper cutter
· CNC machine tool
· Automatic measurement
· Remote contro
