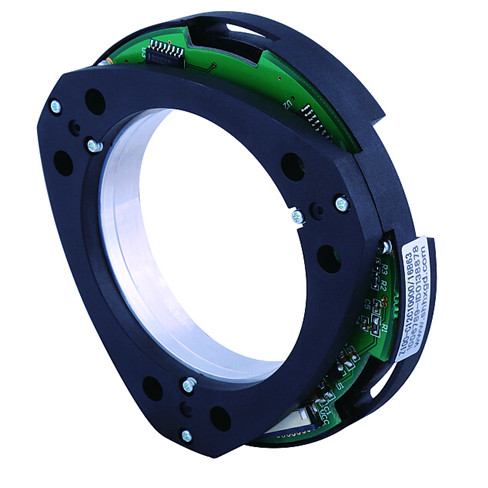

Z100 module encoder

Product introduction：

External dimensions : Small volume, external diameter : Φ100mm, thickness :16mm

diameter of shaft: Φ40-65mm

Resolution : up to 10000P/R

Supply voltage : DC5V&DC8-30V

Data download

Detail display

Items	Basic parameters
Brand	HENGXIANG
Encoder type	bearingless encoder
External diameter	100mm
Thickness	16mm
Hollow shaft type	through hole
Hollow shaft diameter	40mm;63mm;65mm
Resolution	2500/8；2500/10;2500/16;5000/10;5000/16;
Resolution	10000/8;10000/10;10000/16
Output phase	A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W-
Supply voltage	DC5V ; DC8--30V
Output mode	radial cable
	radial socket
	line drive (26LS31) TTL
	line drive(DC8-30V) HTL
Cable length	300mm
rise/fall time	less than 1 us(cable length:2 meters)
Consumption current	120mA MAX
Top response frenquency	300KHZ
GND	not connect to encoder
Slew speed	5000rpm
Environmental temperature	Operating:-20 ～+80°；storage:-25 ～+90°
Enviromental humidity	Operating and storage: 35-85%RH(noncondensing)
Material	aluminium alloy
Certification	CE
package	Carton box
Net weight	About 180g (with package)
